Save $400.00 Now on special warehouse pick up pricing! $8,229.00 Free Shipping from Madison, IN (local sales tax may apply). Shipping from Madison, IN may be the quickest option currently. Introducing Forward® Lift’s F12 12000lb. capacity ALI Gold Certified Two Post Lift for raising most passenger cars, trucks and vans. The F12 offers a NEW Lower Pad Height of 4 3/4″, Single Point Lock Release, Free Truck Adapters and New Adjustable Width and Height.
Free Shipping To Over 70% of the USA – See Where It’s Free
For warehouse pick up at our Texas or Pennsylvania warehouse call for pick up price, make payment and schedule a pick up appointment.
COVID-19 Supply Notice: The pricing includes shipping from the warehouse closest to you. If the product is not in stock at the warehouse closest to you, but is in stock from a further warehouse, we will ask if you would like to get a quote to ship from the other warehouse or wait for the item to return to stock. This is typically a small additional cost.
The Forward® Lift F12 is a ALI Certified 12000 lbs. Capacity Two Post Overhead Truck Lift. The F12 is designed with symmetric arms making it the solution for servicing and maintaining Heavy Duty Trucks and Fleet Vehicles.
When considering a 12,000-lb. capacity 2 post lift, do your homework and buy only “Certified” from a known quality manufacturer such as VSG/Dover.
The F12 is manufactured by the VSG* division of the Fortune 300 Dover Corp. (NYSE:DOV). Based Here, Certified Here and Insured Here in the USA. Dover is the Largest Lift Manufacturer in the World and enjoys over 80% market share of the car dealership business in this country. Why? Because they take care of business, before, during and especially after the sale. You simply cannot get the “Peace Of Mind” from any other lift manufacturer than you have when you own a Dover product. Over 80% of car dealerships get it right and “Get It Up” with Dover.
*VSG/Dover has “Hundreds of Thousands” of lifts and service racks installed in vehicle repair shops worldwide. Currently selling over 50,000 units per year. More than any other manufacturer.

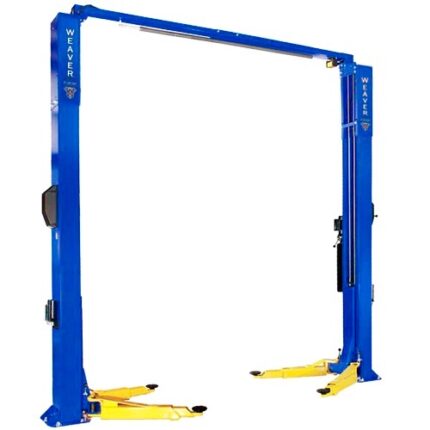

The F12 has two piece column construction with an overhead which provides a clear floor leaving no structure on the floor between the posts making for a friendly workspace. The Overhead structure has a padded automatic shutoff for taller vehicles.
The F12 comes with 4 – 4 1/2” and 4 – 8 1/2″ pin style truck adapters. The Adjustable Truck Adapters coupled with a low pad height of 5” allows for a tremendous range in lifting capabilities.
Single point lock release system has been added to Forward two post lifts to improve n bay efficiency. Direct Pull cylinder design coupled with single point lock release make for a safe and efficient lifting and locking operation.
The F12 is warranted by Forward Lift’s 5 structural parts warranty, 18 months for all other components (power units, cables, cylinders, arms etc…) and 6 months labor costs.
Note: The Forward® Lift F12 requires a minimum depth of 6” with a minimum 3000 psi compressive strength.
Forward® Lift – Engineered to Perform, Built to Last!
FEATURES
- Features symmetrical column design
- Hydraulic cylinders in each column: Full Stroke Cylinder rod concealed inside carriage
- Closed loop hydraulic system – preventing hydraulic contamination
- Powder coat, oven baked finish – more durable than conventional coatings
- Third party tested by ETL and certified by ALI
- Padded shut-off bar
- 2-Stage front AND rear arms
- High tech gear style arm restraints
- Includes truck adapters
- Single point release lock in each column, resets on upstroke
- 5 year structural warranty, 18 month parts warranty, and 60 day labor warranty
- Optional narrow bay model
- Optional high rise and extended height available
PRODUCT SPECS
- Capacity : 12,000lbs.
- Maximum Rise: 77-3/4″
- Overall Height for Stock Model: 166″ (4216mm) Standard Height (F12N300)
Optional Heights: 178″ (4521mm) Extended Max. Height (F12N301)
154″ (3912mm) (F12N302)
143″ (3632mm) (F12N303) - Height to shut-off: 160-1/8″ (4067mm) Standard
172-1/8″ (4524 mm) Extended
148-1/8″ (3762 mm)
137-1/8″ (3483 mm) - Minimum ceiling height: 168″
- Minimum adapter height: 4-3/4″
- Overall floor width: 140″ or 146″
- Inside column width: 114-7/8″ or 120-7/8″
- Drive Through Clearance: 102-3/4″ or 108-3/4″
- Front arm reach: 35″ to 54″
- Rear arm reach: 35″ to 54″
- Adapter extended heights: 3-1/2″, 5″
- Voltage/Amps: 208/ 230v, 20 amps
- Shipping weight 2200-lbs.
- Motor/Phase: 2HP/ 1 phase
The Forward® Lift F12 is proudly manufactured by Dover Corp.’s Vehicle Service Group (VSG). VSG comprises nine major vehicle lifting and collision repair brands: Rotary Lift, Chief® Automotive Technologies, Forward® Lift, Direct-Lift®, Hanmecson®, Revolution® Lift, Elektron, Blitz® and nogra®. Based in Madison, Ind., VSG has operations worldwide, including ISO 9001-certified manufacturing centers in the U.S., Europe and Asia.
