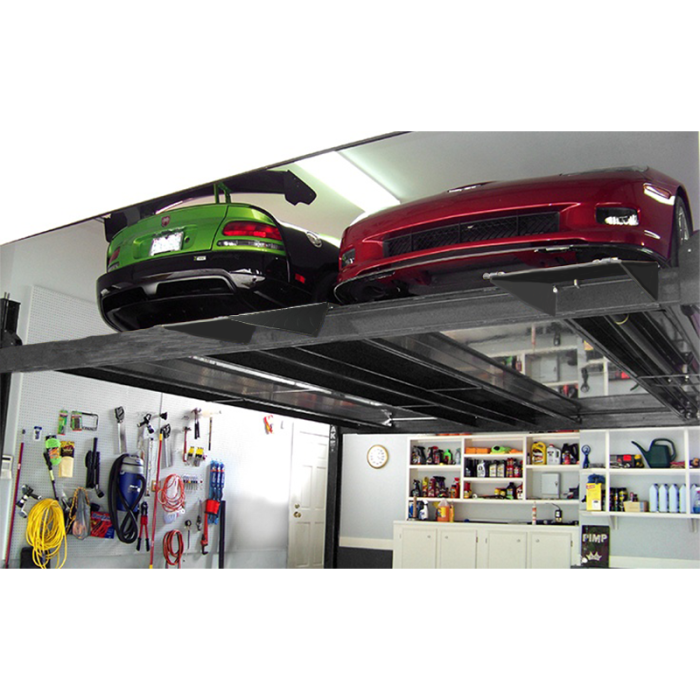

Double-Wide Four-Post Lift to Park Four Vehicles

If you need to park up to four vehicles in a space that previously could only fit two, 192” post-to-post clearance is perfect for two of whatever you drive. No more sacrificing the indoor protection of your daily drivers. You know what we mean. You’ve been leaving them exposed in the driveway, so you can keep your weekend rides safe indoors. The BendPak HD-9SW four-post lift lets you park four vehicles and keep them tucked in the garage.

Know what else? The runways are completely open-center, so this parking lift does double-duty as a maintenance lift. Work on two vehicles at once if you want! Only BendPak offers total peace-of-mind and lets you enjoy the lifestyle you want to live. Clear more space at home or increase the parking and service capabilities in your shop. Take in all the parking glory BendPak has to offer with this double-wide stacker.

Dual-hub cable sheaves

We’re prepared for you to park anything up to 9,000 lbs. on this lift. With all that weight onboard, why take chances on the cable sheaves? We only use dual-hub sheaves to reduce friction on the cables and keep your trucks and SUVs safely parked up top for as long as necessary.

Multi-level locking positions

The most important asset of a parking lift is how easily it lets you stack vehicles. With a lock position every few inches, we make it easier to park vehicles, no matter the size of your garage. All locks automatically engage at the same time as the lift rises.

Heavy-duty aircraft cable

This may be a four-post lift, but these cables really were made for large, heavy aircraft. Imagine how safe that makes them for use on cars and trucks. An individual cable has a tensile strength of 14,400 lbs., making the lift capacity of the four cables combined 640% more than the 9,000-lb. certified rating.

Electric-hydraulic power system

The HD-9SW parking lift is easy to lift and lower. The power system never requires maintenance, keeps the runways lifting and lowering evenly and only moves if the locks engage and release simultaneously. The parts and components of your BendPak four-post lift work as one, tied together by one of our world-famous power units.

Large base plates

10” x 12” base plates strike a balance between compactness and stability. They’re so stable, in fact, that some people don’t even bolt them down.

Integrated design

All moving parts and components are tucked away neatly in the lift structure. Anytime you need to perform inspections, just peep around to the inward-facing side of the pillar, and you’ll see everything in there (most likely lubricated and working fine). Internal-running cables and parts are kept safe from adverse weather and environmental hazards.

Low-deck runways

The runways of this parking lift feature a low-profile rise of only 4.5″. That’s essential for getting low-stance vehicles safely up on the lift.

Longer approach ramps

To get your low ground-clearance vehicles on top, we provide extended approach ramps. This makes it safe and quick to load them up, while your bottom-level vehicle can glide effortlessly underneath.

NOTE:Comes standard with 1 Kit(pair) of Aluminum Ramps

Automatic safety locks

Auto-locking safety locks are spring-activated, so they don’t rely on electrical or hydraulic wiring to work. They simply click into place when the parking lift runway passes the lock position. You can hear all four engage simultaneously as the lift climbs. As the lift descends, the locks will release together, ensuring safe, level operation at all times.

Cable slack detection

A secondary slack-cable detection system cuts operations when slack is detected. Most likely, a cable is not rolling over the hub properly, which makes one or both of the ramps uneven. The four-post lift will shut down before the situation gets out of control. More than likely, this will never happen for as long as you own and properly maintain your BendPak.

Choose tall and wide

For many of our customers, garage space isn’t an issue, and the need to park big, heavy vehicles is all that matters. That’s why we offer a super-sized version of this parking lift series, the HD-9SWX. This lift has an 82” rise (12” higher than the standard version) and 188″ runways, (two feet longer than the standard). It generously accommodates large trucks and SUVs side-by-side. The HD-9SWX is ideal for homeowners and shops that require ample headroom and enough runway clearance for long-wheelbase vehicles.
